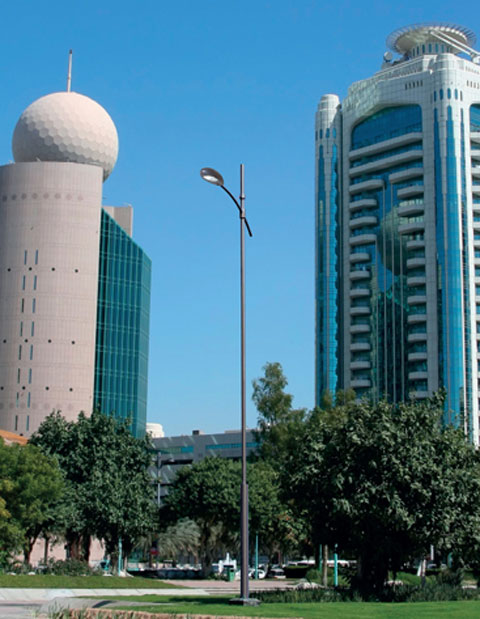

Doom

Composed by:

- pole made from tube-type FE360B tapered tapering to only two of them assembled at 90 ° are the tapering circular section with base diameter up to max 158 at a height of 7 meters and with a base of 127 to a height do 6 meters;
- The pole is set to 132x38 slot at the height of xxxx to a height of 6 meters flush door called Reset;
- a 186x45 slot at the height of xxx to a height of 12 meters;
- provision of a ground plate placed at 600/800 mm from the base of the pole;
- provision of cable entry hole with the same dimensions of the slot terminal, located at 350/600 mm from the base;
- shrink tubing for in-ground (on request);
- provision for the inclusion of the arms is at the top is staggered to meet all lighting requirements;
- provision of extension is to be buried or plate for the floor;
- pole certified to CE EN40-5 up to Category IV. The heights of the poles vary from a minimum of 5 meters to a maximum of 10 meters. Each pole for aesthetic can be made depending on the
choice of arm, with 4 different tips.

Finish:

steel parts are galvanized, hot hand zinc phosphate powder, finishing powder, dried in an oven color gray cast iron (a min. 250 microns), minimum guarantee 2,000 hours in salt spray, the aluminum parts undergo a degreasing treatment, phosphating bottom of the zinc phosphate and powder dried in an oven UV resistant, with a thickness ≥ 150 microns and a minimum guarantee of 2,000 hours spent in salt spray.

Fixing:

through extension of the pole into the ground to 600/800 mm or with a flange.

Technical parameters:

height mm 5000 - 6000 - 7000 - 8000 - 9000 - 10000.
