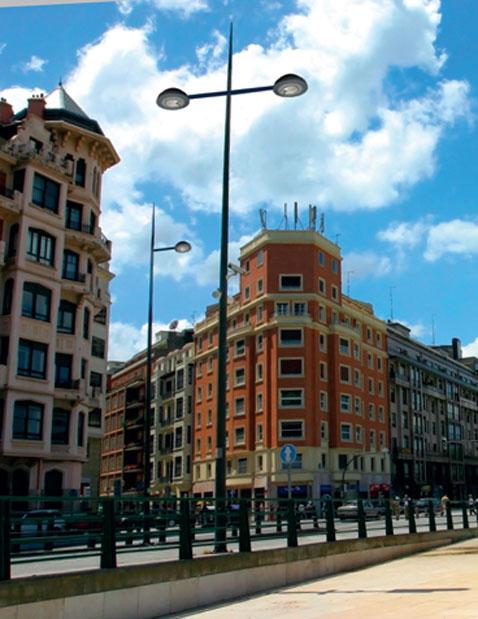

Koni/P

Composed by:

Palo made of galvanized ERW pipe type (electrically welded for strength) and UNI EN 10025 FE360B dimensional tolerances allowed UNI EN40 / 2 and EN 10051. 3 or 4 mm thick. The pole is equipped with:

• 132x38 slot mail mm to 1,500 mm from the base to centerline for heights up to 6000 mm;
• 186x45 slot mail mm to 1,800 mm from the base to centerline for heights up to 12,000 mm;
• Grounding plate placed 600 mm from the base to heights up to 6000 mm and 900 mm for other heights;
• for cable entry hole size as the slot terminal block to 350 mm from base to centerline for heights up to 6000 mm and 600 mm for the other heights;
• shrink tubing for in-ground on request.

For steel poles: hot-dip galvanizing according to UNI-EN 40 / 4. Poles for paint: hot dip galvanizing treatment of degreasing, phosphate coating the bottom of the zinc phosphate, powder coated and dried in an oven or cast iron gray RAL (minimum thickness 200 microns), minimum guarantee 2,000 hours in salt spray.
CE Certification to European standard EN40-5 up to Category IV.

Fixing:

By extension to 600/800 mm into the ground or through the flange.

Technical Parameters:

5000/12000 mm height.
