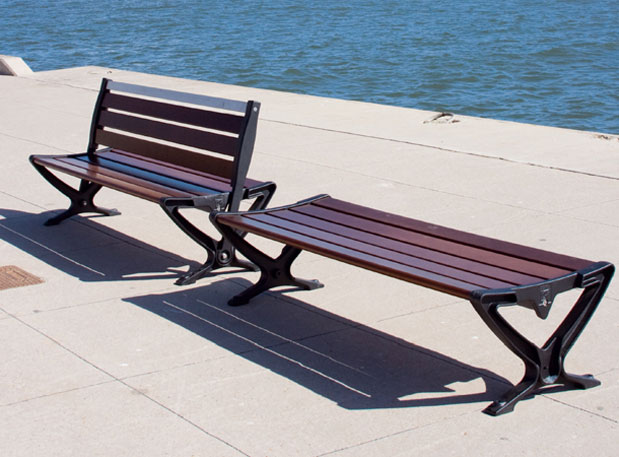

Reverse
Composed by:
- 2 side supports, made of cast iron EN-GJL-200 to UNI EN 1561, with a triangular geometry with vertices rounded with five variable section for accommodation to accommodate the wooden bars;
- Session 5 bars made from Iroko wood matured;
- backrest consisting of 2 brackets in cast iron EN-GJL-200 to UNI EN 1561, prepared for the insertion of 3 wooden bars Iroko seasoned and upper end of a bar of stainless steel;
- bar stainless steel stiffening longitudinal section triangular;
- Central rompitratta containment Fe 360B steel galvanized. Peculiarities of the bench is its versatility: the overturning back, in fact, you can vary the seating position. The bench can also be provided in version BENCH eliminating the entire structure of the backrest.
Finish:
The cast iron parts subjected to sand, primer immersion in a zinc component, a hand Spray the same primer with zinc phosphate, fi nish powder kiln-dried gray cast iron (minimum thickness. 180 microns), guaranteed minimum 2000 hours of salt spray and the parties are satin stainless steel, wood is treated with a coat of primer and finish for external fi nish.
Fixing:
The base to the ground is prepared for the tassellaggio by bolts.
Technical parameters:
overall dimensions:
mm1720x570x740h bench, seat height 380 mm,
total weight 60 kg;
mm1720x570x380h bench, seat height 380 mm,
total weight 40 kg.
