About QT Compact Clamp and Low Profile Bracket (LPB)

QT Compact Clamp and Low Profile Bracket (LPB)

QT Compact Clamp and Low Profile Bracket (LPB)

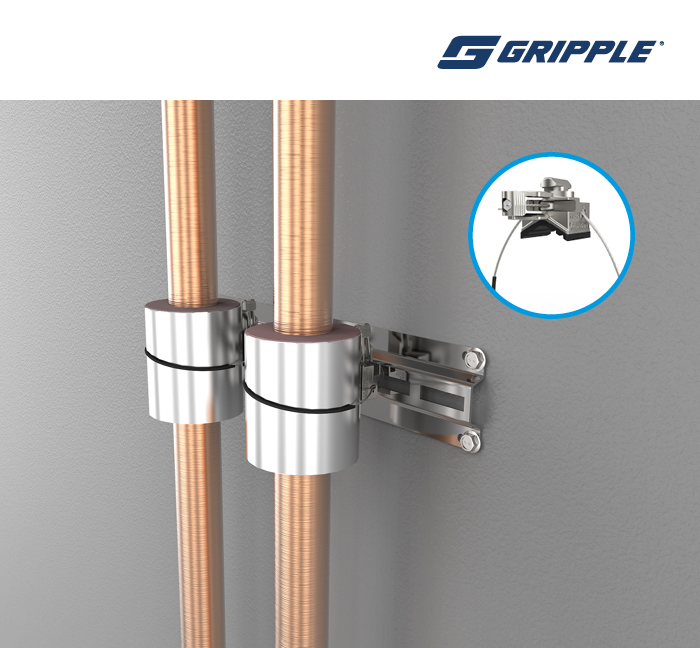

A reduced height version of the Quick Twist Universal Clamp, for applications where space is restricted or mounting close to the soffit or wall is required.

  • Quick – Low Profile Brackets are supplied with Quick Twist Compact Clamps featuring quarter turn attachment
  • Simple – no tools or “Hot Works” permit required for installation
  • Saves labour time - eliminates the need for cutting channel on site, allowing more productive use of labour
  • Universal – replaces more than 11 different pipe rings
  • Versatile – pipes can be mounted less than 35 mm from the soffit or wall
  • Safe – 45 kg SWL with a 5:1 safety factor (equivalent to 3 in (OD 89) steel pipe filled with water)
  • Supplied in ready to use kits with Low Profile Brackets

Brochures for QT Compact Clamp and Low Profile Bracket (LPB)

Brochures for QT Compact Clamp and Low Profile Bracket (LPB)
Preview Description Format Size Open
Piping Solutions Brochure
PDF 13.6 MB Open
