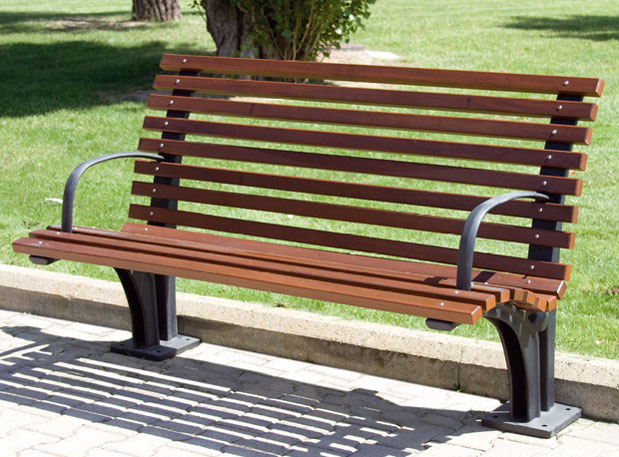

Verona

Composed by:

• 2 side supports with arm in cast iron EN-GJL-200 according to UNI EN 1561;
• 2 holders made of cast iron EN-GJL-200 according to UNI EN 1561, Weight 35 kg / each;
• 16 bars of Iroko wood matured (section 45x35 mm) chamfered at the corners, perforated for attachment to the supports with stainless steel hardware;
• Central rompitratta containment Fe 360B steel galvanized.

the cast iron parts subjected to sand, primer-component zinc immersion, spray a coat of the same zinc phosphate primer, finishing powder, dried in the oven, gray cast iron (minimum thickness. 180 microns), the minimum guarantee 2000 hours in salt spray; the wood is treated with a coat of primer and glossy exterior.

Fixing:

The foot on the ground has a cage in the concrete foundation by drowning 300 mm.

Technical parameters:

1500x726x840h mm overall size, seat height MM420, total weight 90 kg.
