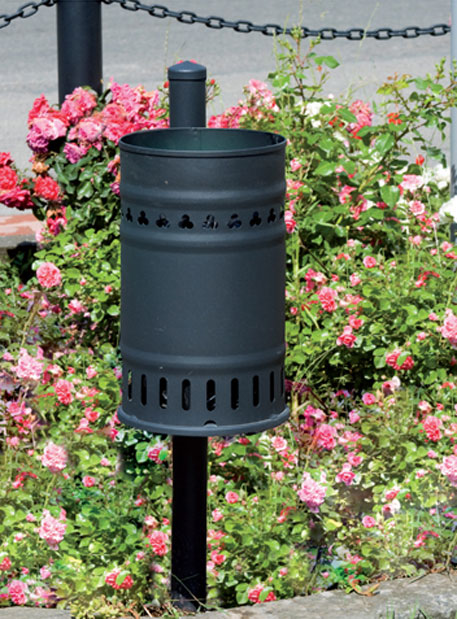

Prato
Composition:
supporting pole in galvanized steel Fe 360B (diameter mm 60, ht. above ground height mm 1050) with terminal conic plug;
bin in galvanized sheet steel (thickness mm 1, diameter mm 260, height mm 470, capacity l. 25) with one line of clover shaped openings in the upper part and one line of vertical openings in the lower, it has a snaplock opening with triangular key and a perforated bottom surface to allow drainage of rain water;
name plate in galvanized steel positioned on the bin (mm 169x148hx1) for the name or Coat of Arms of the city (on request and for minimum 100 pieces).
Finish:
galvanization, powder coated and kiln enamelled in green, cast iron grey (min. thickness 200 micron).
Fitting:
the supporting pole continues into the foundation plinth for mm 200.
Technical parameters:
this model is available in single, double or wall version;
overall dimensions:
single:
mm 360x260x1100h,
total weight kg 10,
capacity lt 25;
double:
mm 670x260x1100h,
total weight kg 20,
capacity lt 25;
wall mounted:
mm 360x260x500h,
total weight kg 8,
capacity lt 25.
