2004

Composition:

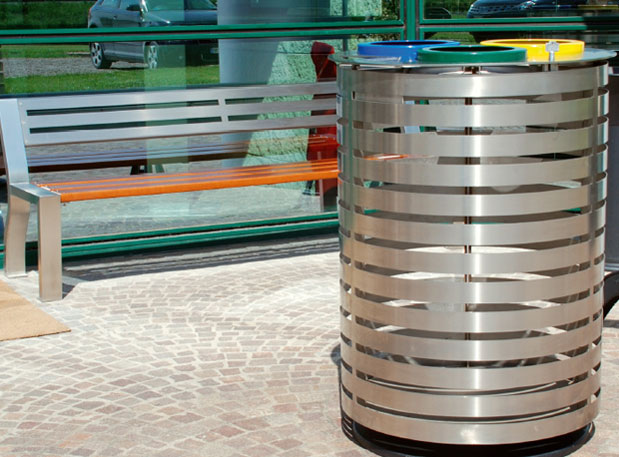

• cylindrical drum realized in AISI 304 stainless steel sheet (diameter mm 680, height mm 890), composed of 13 bands placed one above the other at a distance of mm 20 with cylindrical base in AISI 304 stainless steel (diameter mm 350, height mm 42). Inside the drum there are three plastic bag holding rings for the differentiated collection;
• circular cover in stainless steel AISI 304 (diameter mm 720) with three coloured rings in plastic (to make easier the differentiated collection); on the top of the cover there is an ash-tray. The cover is fixed to the drum by an hinge and it is provided with a snap-lock with a triangular key to remove the internal plastic bags;
• circular plate (diameter mm 620) realized in EN–GJL–200 cast iron. Product made from stainless steel AISI 316L availabe on special request.

Finish:

the cast iron parts undergo a treatment of sandblasting, dipping in water soluble zinc phosphate primer, spray painted using the same zinc phosphate primer, epoxy powder coated and kiln enamelled, minimum guarantee 2000 hours in salt spray chambers; the stainless steel parts are glazed.

Fitting:

by means of M12 anchor bolts.

Technical parameters:
diameter mm 720,
height mm 996,
total weight kg 50,
capacity lt 32
