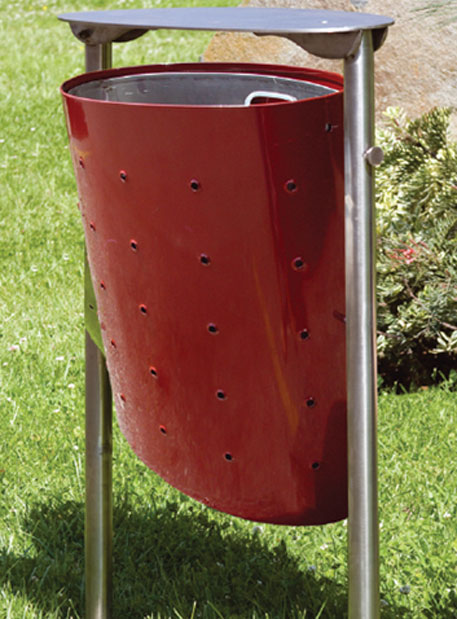

City

Composition:

• 2 supporting poles in tubular stainless steel AISI 304 (diameter mm 40; height mm 1000 above ground);
• oval shaped bin in stainless steel sheet AISI 304 with anti-snag perforations (diameter mm 250x500, height mm 600, capacity lt. 55, height from ground mm 260) inserted between the support poles, this bin is hinged to the two vertical supports and stopped by a spring system to make easier the access to internal gasket;
• smooth oval cover resting on support poles (dimensions mm 615x300, thickness mm 5) in stainless steel sheet AISI 304, placed at a height of mm 150 from the bin with a triangular key locking system.

Product made from stainless steel AISI 316L availabe on special request.

Finish:

the stainless steel parts are glazed.

Fitting:

the supporting poles extend for mm 250 into the foundation plinth or slab.

Technical parameters:
overall dimension mm 615x300x1000h,
total weight kg 25,
capacity: lt 55
