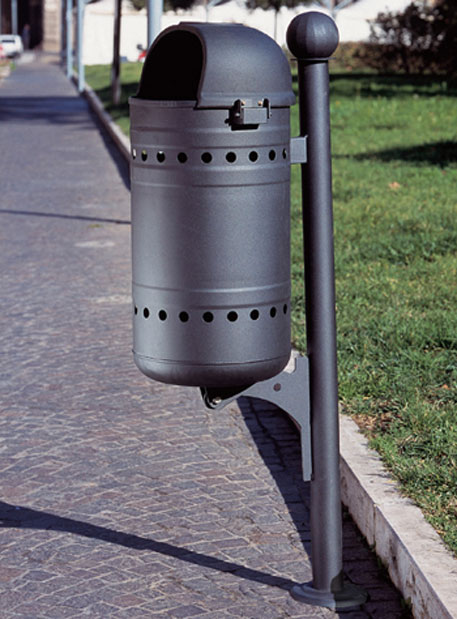

Valenza
Composition:
supporting pole in galvanized steel Fe 360B (diameter mm 60, height mm 1000 above ground, thickness mm 3) with a decorative sphere (diameter mm 80);
circular ground cover plate in stainless steel (upper diameter mm 60, lower diameter mm 160);
bin in galvanized steel Fe 360B (thickness mm 1, diameter mm 300, height mm 530, capacity 1. 35) with two lines of circular perforations;
cap shaped top cover realized in aluminium cast attached to the bin with a hinge and locked with a triangular key (opening for introduction of the rubbish height mm 150); at the top of the cover there is a round ashtray in steel (diameter mm 100);
"L" shaped supporting bracket for the bin in Fe 360B galvanized steel (extension mm 200, height mm 200, thickness mm 6).
name plate in galvanized steel positioned on the bin (mm 169x148hx1) for the name or Coat of Arms of the city (on request and for minimum 100 pieces).
Finish:
the steel components undergo a treatment of galvanization, are powder coated and kiln enamelled in cast iron grey (min. thickness 180 micron); the aluminium components undergo a treatment of phosphatization, degreasing, are powder coated and kiln enamelled in cast iron grey (min. thickness 180 micron).
Fitting:
the supporting pole continues for mm 200 into the ground.
Technical parameters:
overall dimensions:
single: mm 470x310x1100h, total weight kg 15;
double: mm 880x310x1100h, total weight kg 20.
